OPTIONS-Paint Interiors Avionics
Premium Paint Schemes Mirco Picorari and Custom Designs
Design 010- Traffic Yellow & Red Orange & Traffic White & Silver
Design 010-Traffic Yellow & Dark Grey & Traffic White & Silver
Design 011 Racing Blue Metallic & Dark Grey &Traffic White & Silver
Design 012 Pearl Ruby Red Metallic & Dark Grey & Traffic White & Silver
Design 040 Pearl Ruby Red Metallic & Silver & Black
Design 040 Light Blue Metallic & Silver & Black

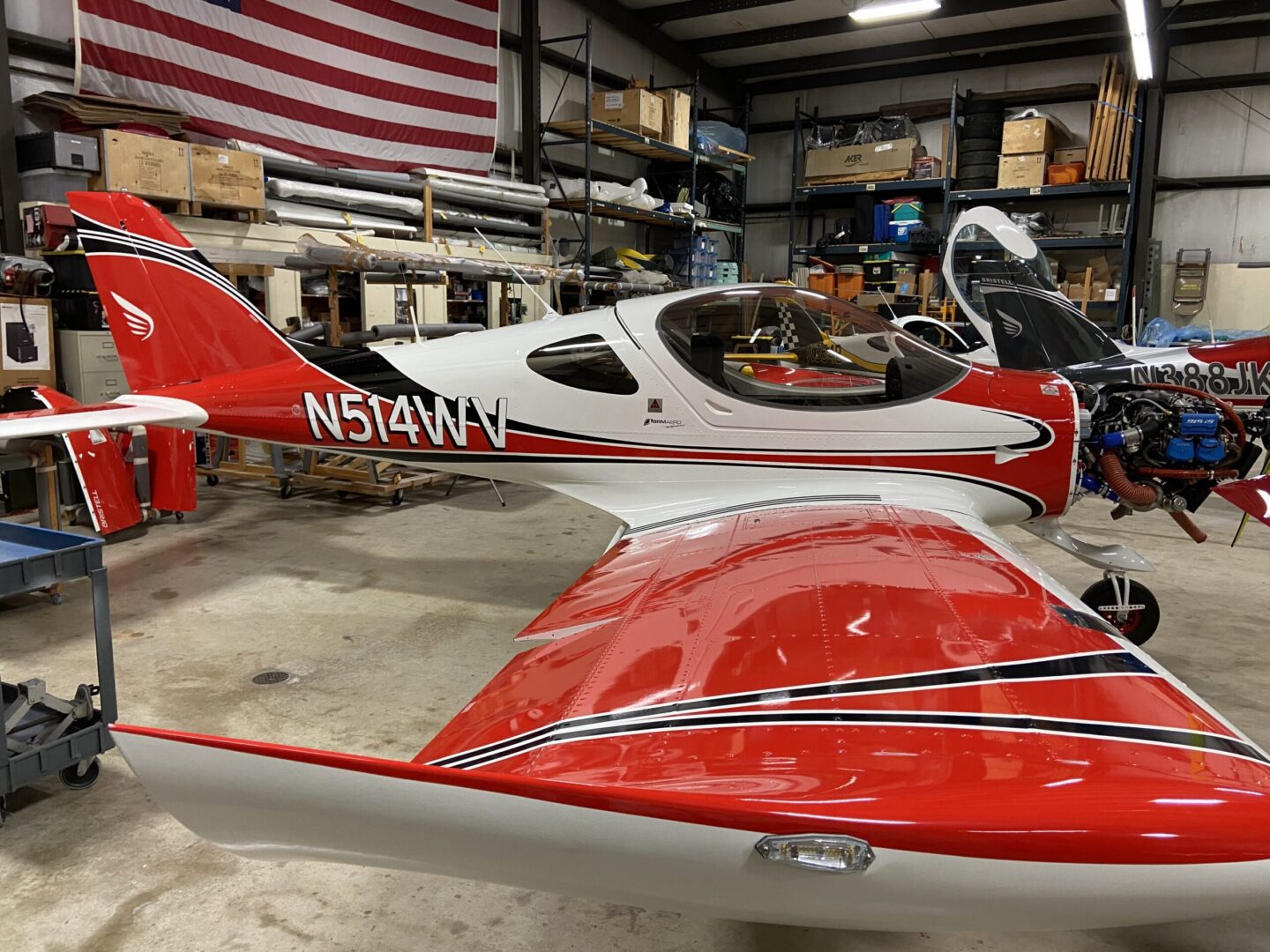

Design 041 Traffic White base with Pearl Ruby Red Metallic & Black Trim
Also available with Light Blue Metallic and Black Trim
Design 101 Traffic Yellow & Silver & Anthracite Grey
Design 100 Pearl Red & Silver & Anthracite Grey
Design 100 Pearl Red & Traffic White & Anthracite Grey
Design 30- Pearl Night Blue & Traffic White
Also available in Red & Traffic White

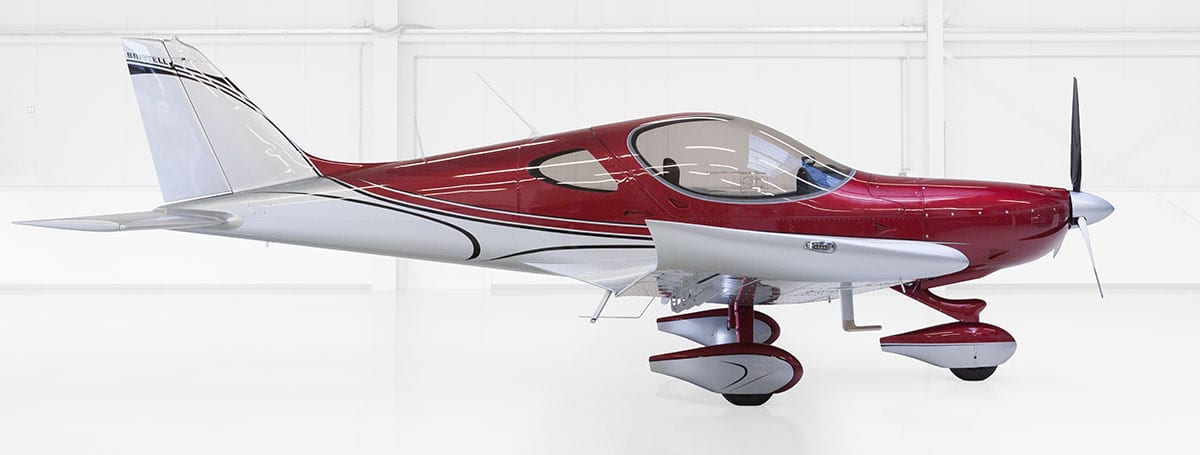

Design 050 Pearl Red & Silver & Black
Design 060 Red Bordeaux & Silver & Black
Design 072 Traffic Yellow & Silver & Grey
Design 070 Race Blue Metallic & Traffic White & Silver
Also available in Red, Green or Orange

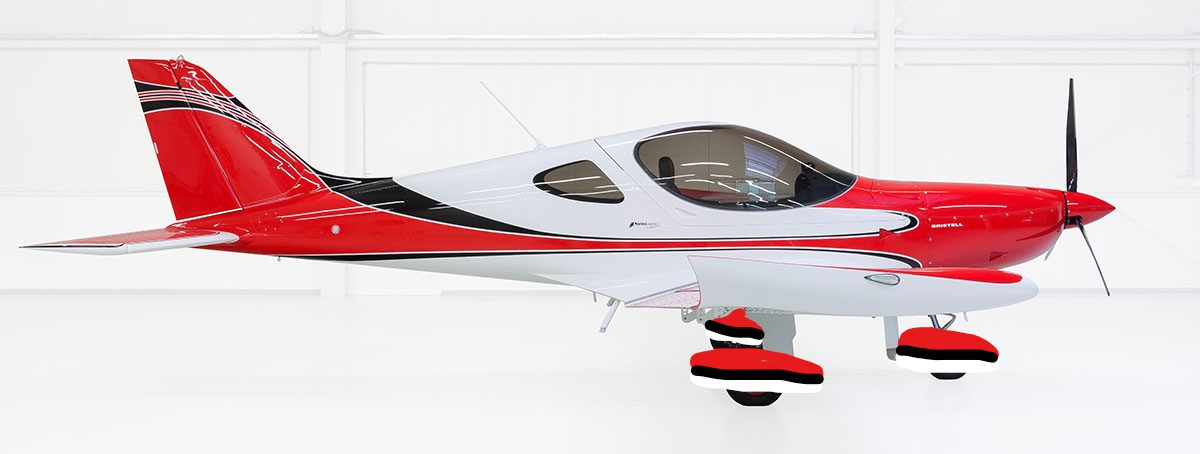

Design 110 Pearl Red & Traffic White & Black & Silver
Design 150 Grey Aluminum & Traffic Yellow & Silver & Traffic White
Design 150 in Blue, Red, or Yellow
pictured below
Deluxe Paint or Graphic Schemes:

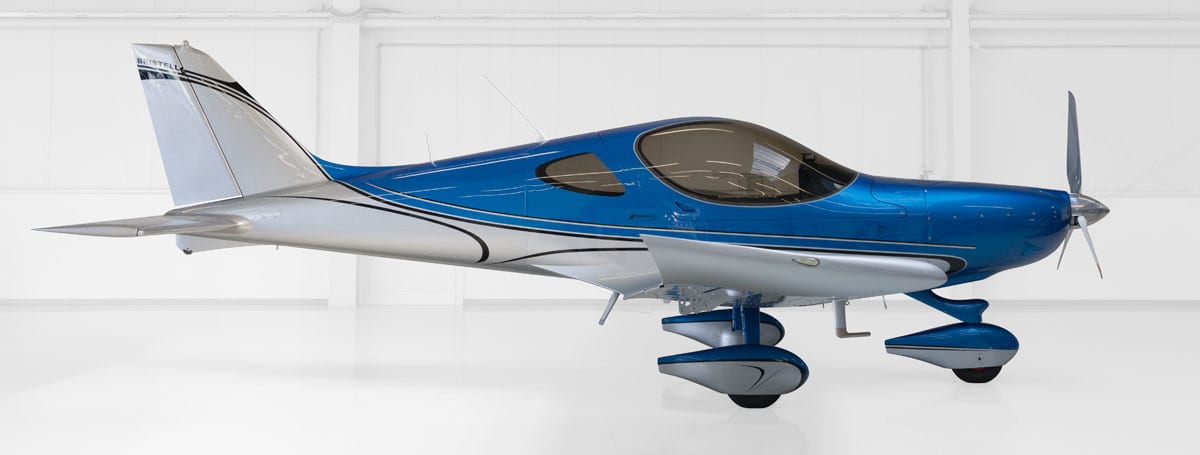

Design 021Race Blue Metallic & Silver
Design 022 Traffic Red and Traffic White (Deluxe Design)
Design 023 Traffic Yellow & Pearl Night Blue
Design 010 Traffic Red & Silver
Design #6- Speed Skate: Red and White without Grey Trim

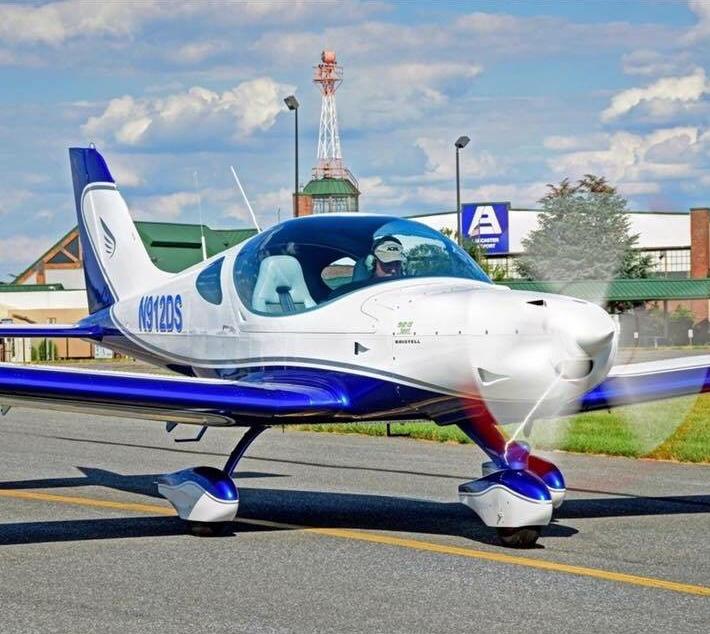

Design #6- Speed Skate Blue on White without Grey Trim
Design #9- Kite: Orange on White without Grey Trim
Design 041 2C- Two Color
Traffic White and Pearl Ruby Metallic Red
Design 041 2C-Two Color
Traffic White or Silver Base with Light Metallic Blue
Design#15- Silver Bee M Vee on White
BASIC GRAPHICS or PAINT
Red and Blue Graphics
on White
Blue and Grey Graphics
on White
2017 Yellow and Black Graphics on White
2020 Black and Blue Graphics on White
2020 Black and Red Graphics on White
2020 Black and Yellow Graphics on White
One color Paint
Design # 16 - Solid: Pearl Red
Design # 16 - Solid: Ballistic Grey
Design #16 Solid: Sunkiss Orange

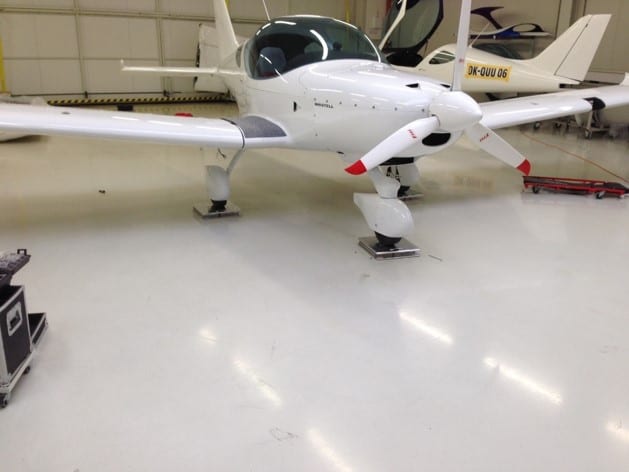

White Overall included without charge.
INTERIOR PAINT CHOICE
OTHER OPTIONS
BRS Aircraft Recovery System
Toe Brakes left and right
Wing Locker or wing lockers

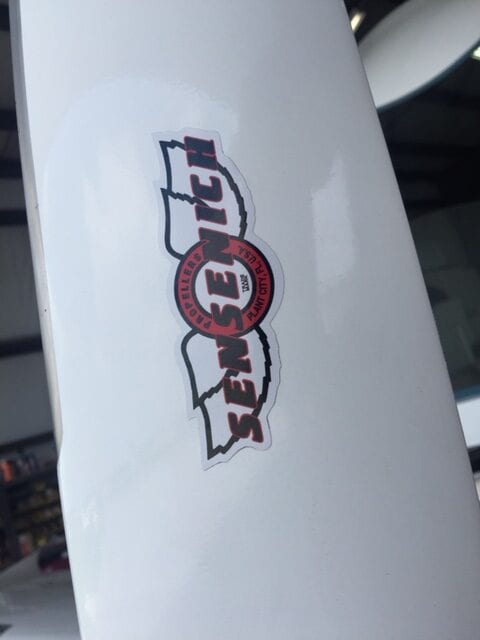

Propellers-Fiti is included. Optional DUC, Sensenich, MT
Garmin GMC 507 Autopilot module with ADAHRS
B Kool Portable Air from Pilotmall.com
BRS Aircraft Recovery System
CHOICE OF FOUR ROTAX ENGINES
912 ULS has dual aneroid carburetors and electric starting packs. A stator that produces 18 amps and a 2.43 to 1 gear box. It is water cooled with 50/50 GM Dex Cool and air cooled,
The Rotax 912iS Sport is Fuel Injected with an Electronic Control Unit that meters the fuel and sets the manifold pressure. It provides the spark for the plugs and automatically sets the mixture. It has dual stators for electrical output and produces 100 HP.
The Rotax 915 has an Electronic Control Unit that controls the mixture and manifold pressure and spark for starting. It has dual stators that provide superior electrical output. When operated in ECO mod the fuel burn is less than 5 GPH. The case is larger than the 912 holding 4 quarts of oil for superior cooling. The pistons have oil injecting orbs to aid in cooling. The oil cooler is larger than the other Rotax engines to assist in heat dissipation. There is a cowl flap fin on the bottom cowl to help force hot air from the engine compartment. The top cowling has a Naca air duct to assist in cooling. The installation includes an intercooler to cool the exhaust air before returning it to the Turbo Charge. The gear box is stronger that the other Rotax engines. The TBO is 1200 hours and will most likely go to 2000 in the near future.
The Rotax 916 has an Electronic Control Unit that controls the mixture and manifold pressure and spark for starting. It has dual stators that provide superior electrical output. When operated in ECO mod the fuel burn is less than 5 GPH. The case is larger than the 915 holding 4 quarts of oil for superior cooling. The pistons have oil injecting orbs to aid in cooling. The oil cooler is larger than the other Rotax engines to assist in heat dissipation. There is a cowl flap fin on the bottom cowl to help force hot air from the engine compartment. The top cowling has a naca air duct to assist in cooling. The installation includes an intercooler to cool the exhaust air before returning it to the Turbo Charge. The gear box is stronger than other Rotax engines. This is Rotax's flagship engine design. The TBO is 2000 hours.
GARMIN AVIONICS A
Single 10 inch Touch Screen with ADS-B in and out included in the base price of a Bristell Light Sport aircraft. Heated Pitot included. Garmin 10 watt Com included. Xm traffic and weather included. We have 5 choices of panels to meet your needs and expectations. You can create your own panel for an additional cost.
The Garmin G3X Touch 10 inch Electronic Flight Information System (EFIS) (GDU 460) clearly displays all the information you need for safe flying. When combined with the GEA 24 module, engine information, fuel, flaps, trim and other vital data can be displayed on the G3X Touch. All of the items shown below are included in the base price of every Bristell.
The GSU 25 ADAHRS is level mounted behind and under the seats and provides level horizon data to multiple devices such as dual G3X Touch 10 inch screens.
The GMU 22 Magnetometer keeps the direction information accurate at all times. There is no directional gyro that needs to be set to the compass every 15 minutes.
The GTP 59 air temperature probe provides accurate Outside Air Temperature (OAT), for use in various calculations that are performed by the G3X touch such as True Air Speed.
GTR 20 Mounted behind and under the seats. Powerfull 10-watt transmitter, 760-channels. Conveniently controlled from the G3X Touch. Auto load frequencies' directly into the G3X.
The GTX 45R ADS-B Transponder provides Mode S ES ADS- "Out" when paired with the GPS20A GPS receiver. It sends 1090 MHZ ES (Extended Squitter) output at all altitudes world wide. Will show ADS-B Weather on your Ipad as well as the G3X.
The GPS 20A works with the GTX 45 and the GDL 51 to provide the pilot with both ADS-B Weather and Traffic but also faster, more reliable Weather and Traffic from Xm. All new Bristell's come with complimentary 6 months Xm subscription.
GARMIN AVIONICS B
DUAL SCREENS, DUAL ADAHRS, SECOND INSTALL KIT, SECOND GPS ANTENNA, SECOND BACK UP BATTERY FOR SECOND GPS, TOSTEN CS 8 GRIP WITH FREQUENCY CHANGING BUILT INTO THE GRIP.
GARMIN AVIONICS C
IFR GNX 375 G5 AP IFR CERTIFIED DUAL SCREENS CERTIFIED GNX 375 GPS WITH VERTICAL GUIDANCE AUTOPILOT WITH ELECTRIC TRIM, G5 back up EFIS as shown.
For information about the VAL 2000 IFR Certified ILS click on the tab below the picture of the VAL2000.
GARMIN AVIONICS D
IFR GNC 255 AP IFR CERTIFIED DUAL SCREENS, CERTIFIED GNC 255 COM, NAV, ILS, AUTOPILOT WITH GMC 507 MODULE Ga 35 ant. and a THIRD MAGNETOMETER Picture includes optional back up G5 EFIS
GARMIN AVIONICS E
THE ULTIMATE PANEL
IFR GTN 650 G5 AP IFR CERTIFIED DUAL SCREENS, GTN 650 CERTIFIED WAAS GPS, VOR, ILS, GAD 29 ARINC INTERFACE TO G3X, G5 BACK UP EFIS WITH BACK UP BATTERY, GMS 345 AUDIO PANEL WITH CLEARANCE PLAYBACK, AUTOPILOT WITH GMC 507 MODULE.
GARMIN AVIONICS F
One G3X Touch screen, IFR CERTIFIED GNX 375 for Vertical Navigation plus ABS-B in and out and XM weather. AUTOPILOT with GMC 507 MODULE Ga 35 ant. and a its own MAGNETOMETER. Garmin four inch back up G5 EFIS. Mount for an Iphone. Picture shows optional Val 2000 ILS.
Custom Paint Schemes can be designed to the specific desires of our new Bristell buyers from a small additional charge of $2000
